Best Xbox Steering Wheel 2026: The Complete Xbox Sim Racing Setup

For most people buying a wheel for an Xbox, I’d go for the Fanatec CSL DD Ready2Race GT3 bundle. The Xbox-licensed CSL Steering Wheel GT3 comes in the box, and the base underneath it is the Fanatec CSL DD, which is, in my opinion, the best low-budget wheelbase. I own one myself.

On an Xbox, Fanatec puts the console licence in the steering wheel, not the base, which means the steering wheel you fit decides whether the console sees your wheelbase and pedals at all. Further down I’ve covered the cheaper gear and hybrid drive wheels from Logitech and Thrustmaster, the Moza R3 Racing Wheel and Pedals for Xbox & PC and the Thrustmaster T598 (Xbox/PC). After the wheels, I’ve gone through where to mount it all, the load cell brake, the games worth building it for and what to do when the Xbox won’t see the wheel.

Quick Navigation
Jump directly to what you’re looking for:
Which wheels work on Xbox? | Xbox wheels by drive type | Desk, stand or cockpit? | Pedals | The games | Fixes | What I’d buy

Which steering wheels work on an Xbox?

The official route onto the console is “Designed for Xbox”, the licence Microsoft gives to partner wheels, and Xbox Wire names Logitech, Thrustmaster and Fanatec among them. On Fanatec kit that licence is a security chip inside the steering wheel itself, and a ClubSport rim gets its Xbox compatibility from the ClubSport Universal Hub V2 for Xbox it’s fitted to. Put an Xbox-licensed Fanatec wheel on a CSL DD, a GT DD Pro, a ClubSport DD or DD+, or a Podium DD1 or DD2, and the whole lot works on the Xbox, with the pedals and shifter connected to the base.

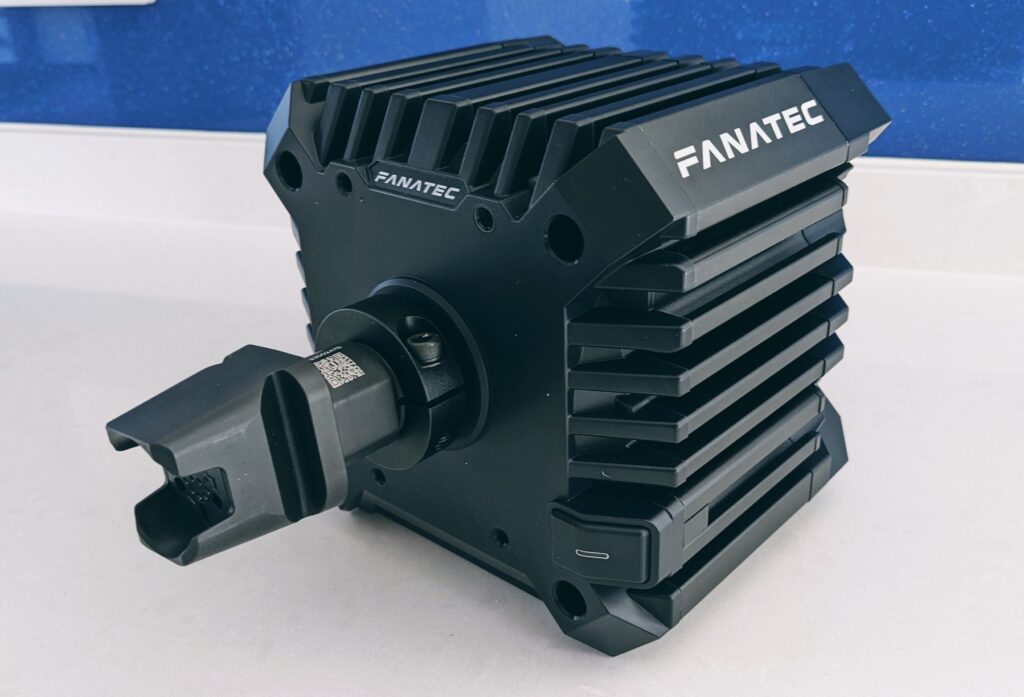

My own Fanatec CSL DD is what Fanatec calls “XBOX Ready”, which means it needs an Xbox-licensed steering wheel on the front before the console will recognise it.

Logitech and Thrustmaster sell separate Xbox editions instead, such as the Logitech G920, the G923 (Xbox/PC edition), the T248X, the T128X and the T598 (Xbox/PC). Check the box says Xbox before you buy, and that the games you want to play list your wheel as well. Moza’s only Xbox-native base is the R3, sold in the Xbox bundle with the ESX steering wheel. Brook’s Ras1ution 2 adapter no longer supports Xbox, so I’d buy a wheel that’s licensed for the console in the first place.

Xbox wheels, from gear drive to direct drive

Gear and hybrid drive: Logitech and Thrustmaster

None of the Logitech G920, the G923 or Thrustmaster’s T128X and T248X is direct drive. A direct drive base connects the steering wheel straight to its motor, and these four get the force to the rim through gearing or a belt instead.

The Logitech G920 drives its force feedback through two motors and helical gearing, and it works on Xbox Series X|S, Xbox One and PC with the three floor pedals that come in the box. Logitech rates the Xbox/PC edition of the G923 at 2.3 Nm (newton metres, the torque rating). It adds a pressure-sensitive brake and TRUEFORCE, which Logitech says connects the force feedback directly to the game’s physics. Thrustmaster calls both the T128X and the T248X hybrid, which on the T248X means a mix of belt and gear. The T128X comes with two magnetic pedals, and the T248X with the three-pedal T3PM set, which has four pressure modes on the brake.

As a driver, I like to feel when the car is losing its available grip, and I like that sensation to come through as an opposing force, especially in the mid-corner. Direct drive does this exceptionally well, whereas something like a Logitech G29 (the G920’s PlayStation twin) would barely let you know you were sliding by comparison.

As an Amazon Associate, SimRacingCockpit earns from qualifying purchases.

Entry direct drive: Moza R3 and Thrustmaster T598

The Moza R3 is a direct drive base rated at 3.9 Nm, and its Xbox bundle costs less than the T598 or the Fanatec bundle below. In the box you get the base, the Xbox-licensed ESX steering wheel, SR-P Lite pedals (two of them, no clutch) and a table clamp. Mine is the Xbox bundle, so the ESX is the wheel on my Moza R3.

On an Xbox you’re tied to the ESX, because Moza says to use it with the R3 bundle on the console.

The Thrustmaster T598 (Xbox/PC) uses what Thrustmaster calls a Direct Axial Drive motor, rated at 5 Nm of constant torque with a +100% overshoot. It comes with a 30 cm rim and the two-pedal Raceline Pedals LTE, which Thrustmaster says can be upgraded to three pedals. Both are in the tables below.

Moza discount code: use SIMRACINGCOCKPIT at checkout for 3% off at mozaracing.com.

The Fanatec route

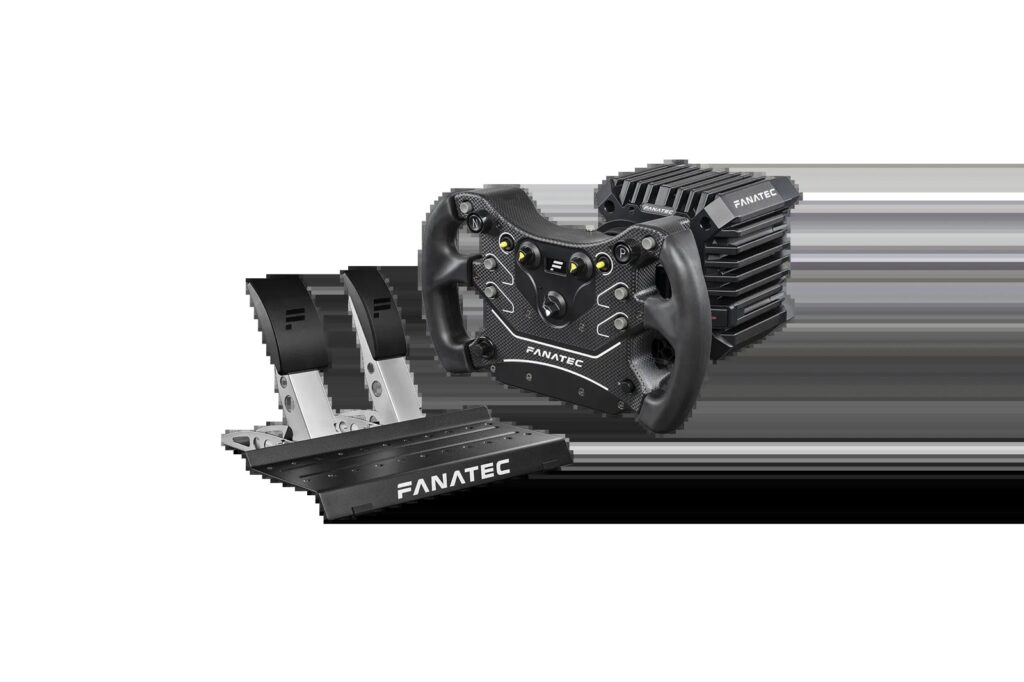

Fanatec’s CSL DD Ready2Race GT3 bundle comes in two versions, and at the moment the 5 Nm one is the cheapest of Fanatec’s direct drive wheels sold as an Xbox bundle on its US store. That one gets you the CSL DD with QR2 Lite, the Xbox-licensed CSL Steering Wheel GT3 (300 mm) and the two-pedal CSL Pedals. The Boost Kit 180, sold separately, takes the CSL DD to 8 Nm. Like many other reviewers and sim racers in the community, I’ve always enjoyed the Fanatec feedback. Is the CSL DD any good? I had my doubts, but when I tried it I found it very smooth and surprisingly detailed for an 8 Nm peak torque wheelbase. This is a brilliant starter wheelbase – and comes recommended by me.

The 8 Nm bundle adds the Boost Kit 180, the CSL DD Table Clamp and the CSL Pedals Load Cell Kit, which gives you a third pedal and a load cell brake. Further up, the ClubSport DD+ Ready2Race GT3 bundle is rated at 18 Nm, comes with the ClubSport Pedals V3 and works on a PS5 as well as an Xbox.

Fanatec discount code: use SIMRACINGCOCKPIT5 at checkout for 5% off at fanatec.com.

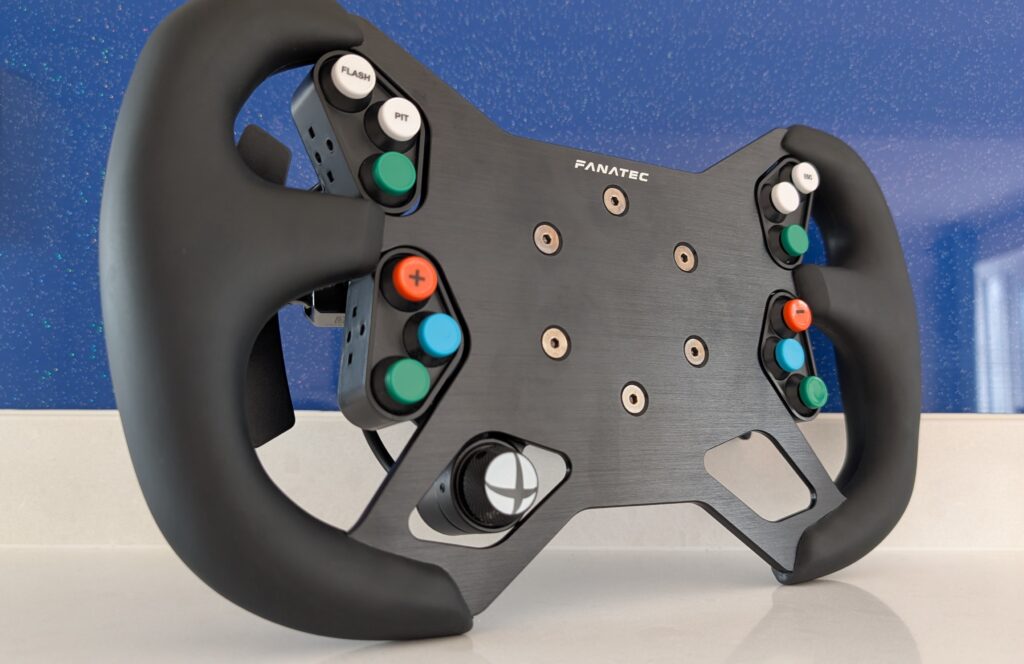

Already own a Fanatec base? Then you only need the wheel. The CSL Steering Wheel GT3 is the Xbox wheel for it, and the step up is the ClubSport Steering Wheel GT3 for Xbox, a 318 mm rim on the ClubSport Universal Hub V2 for Xbox. I built one of those myself.

Desk, wheel stand or cockpit?

On the desk

If you’re starting at a desk, the CSL DD Table Clamp holds the CSL DD or the GT DD Pro and nothing else. It fits desks from 5 to 60 mm thick, and the base sits on it at a fixed 15 degree tilt. You get one in the 8 Nm GT3 bundle, and the Moza R3 bundle comes with a clamp of its own.

A wheel stand

Off the desk, the next step up is a wheel stand like Trak Racer’s steel FS3, which they recommend for wheelbases up to 5 Nm. The 2.3 Nm G923 and the 5 Nm CSL DD bundle are inside that, but the 8 Nm bundle is over it. If you’re going direct drive, the stand or rig has to be robust enough for the forces the wheelbase puts out, or it will flex.

A cockpit

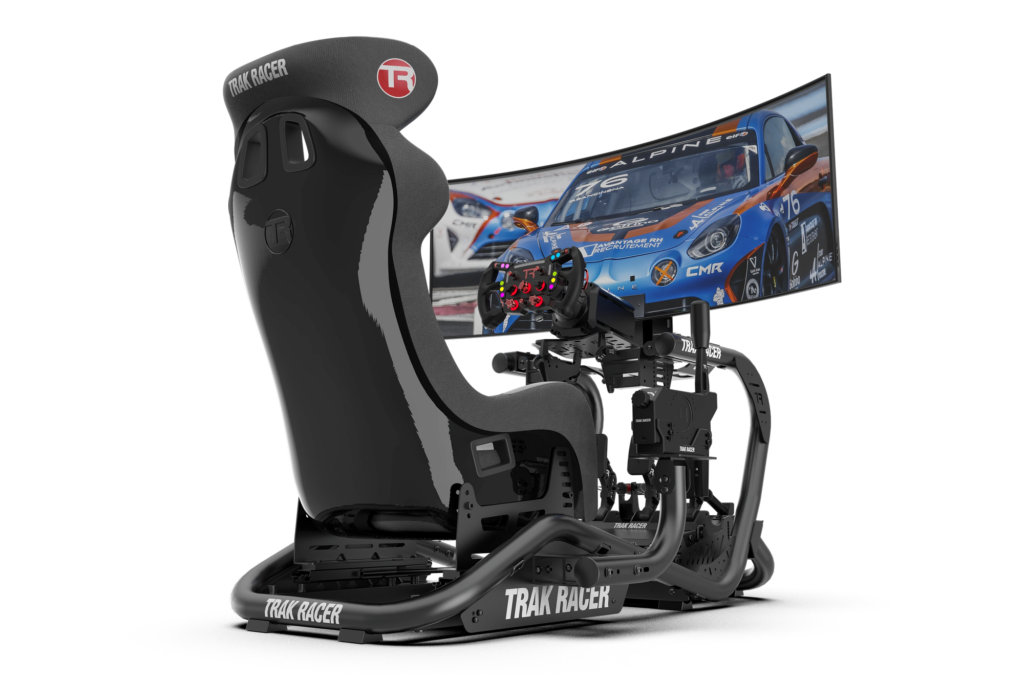

You’re more likely to find Xbox and PlayStation owners in tubular steel rigs, and I really like them because they’re so simple to assemble and install. Trak Racer’s TR8 PRO V2 is made from 2 inch steel tube, and its 25 Nm rating for direct drive bases is well above the 18 Nm ClubSport DD+. You buy the seat on top, although the seat sliders come with it.

When I raced on an RSeat RS1, my Heusinkveld Sprint pedals flexed its pedal base by around 4 degrees at a 25 kg brake force. With Thrustmaster or Logitech pedals there’d have been no flex at all, because the brake force would be perhaps a fifth of what the Sprints need. So if you’re planning to upgrade your pedals, I’d go for the stiffer rig from day one, and you won’t be buying a second one when the new pedals arrive.

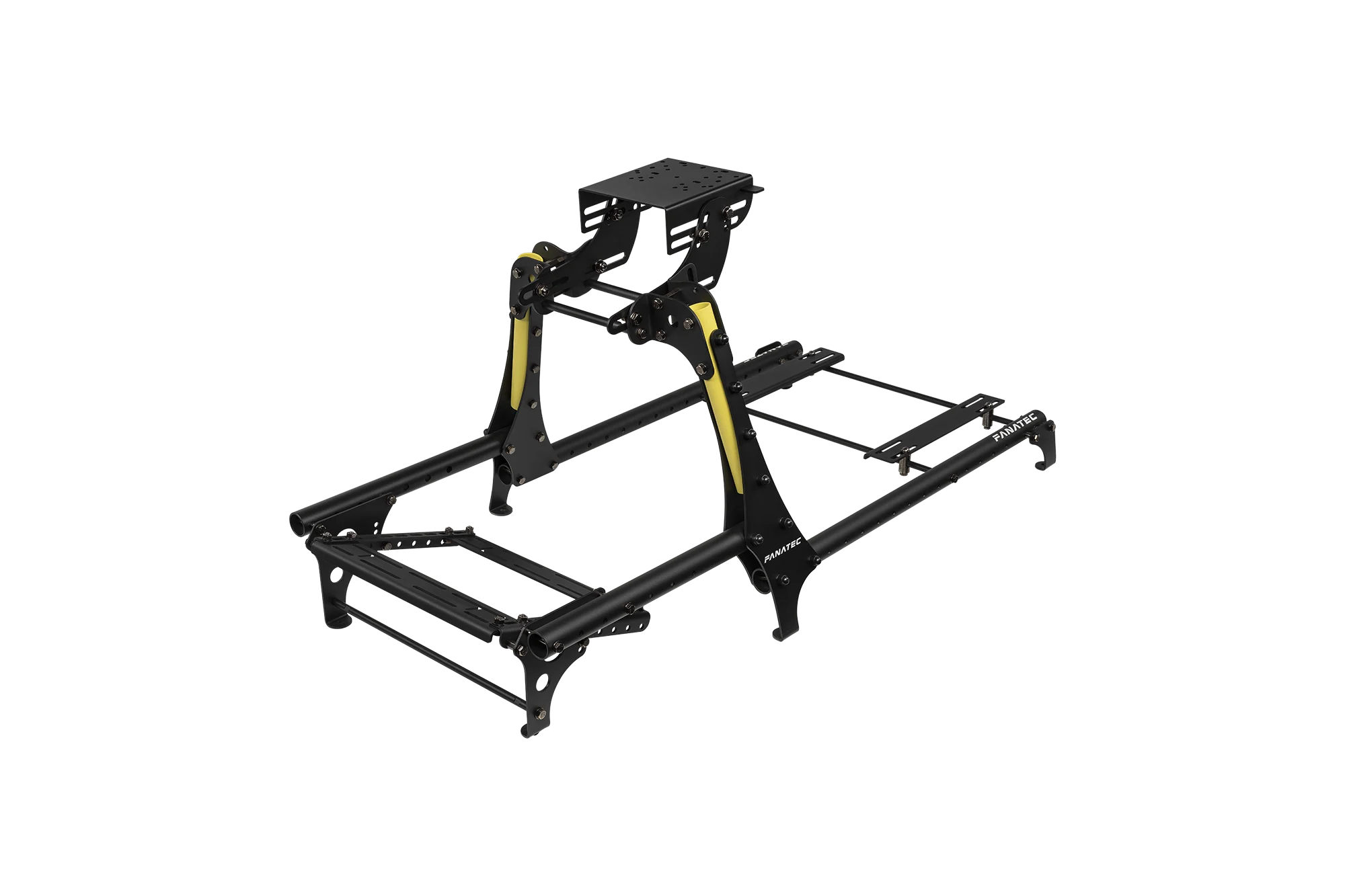

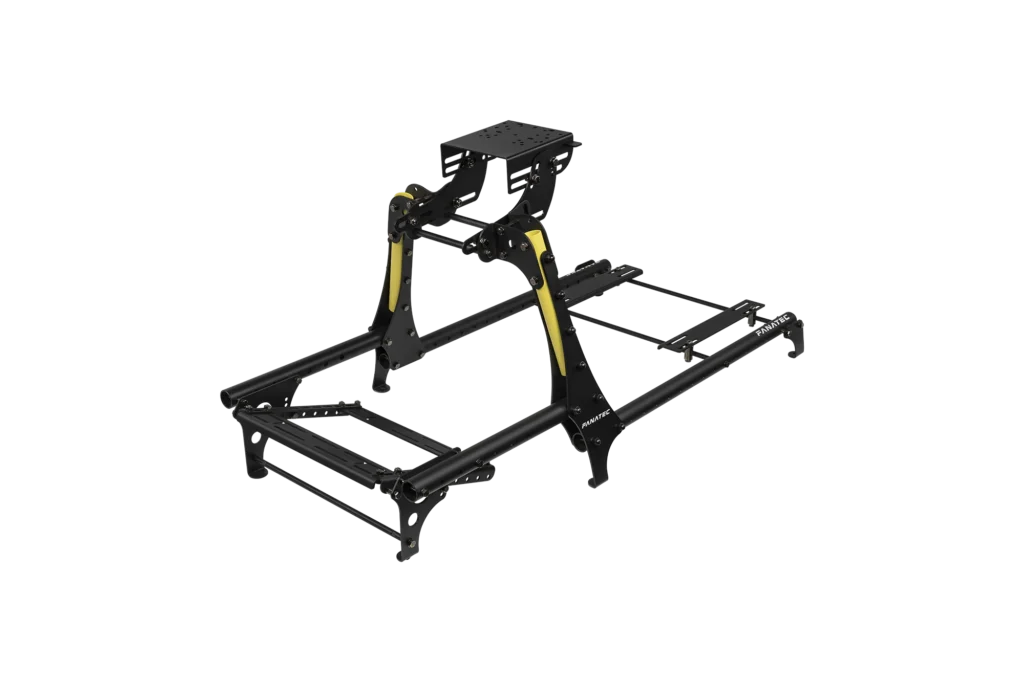

Fanatec’s CSL Cockpit V1.5 mounts the CSL DD from the side, on a trapeze frame of aluminium tube and steel brackets, and you add the seat and the screen mount yourself. There are more rigs in our best sim racing cockpits guide, and our FOV calculator works out the field of view for your screen and how far you sit from it. If you’d rather have the screen mount in the box, the ClubSport GT Cockpit comes with one for 32 to 49 inch VESA screens, on a frame of 50 mm round steel tube.

Pedals and the load cell brake

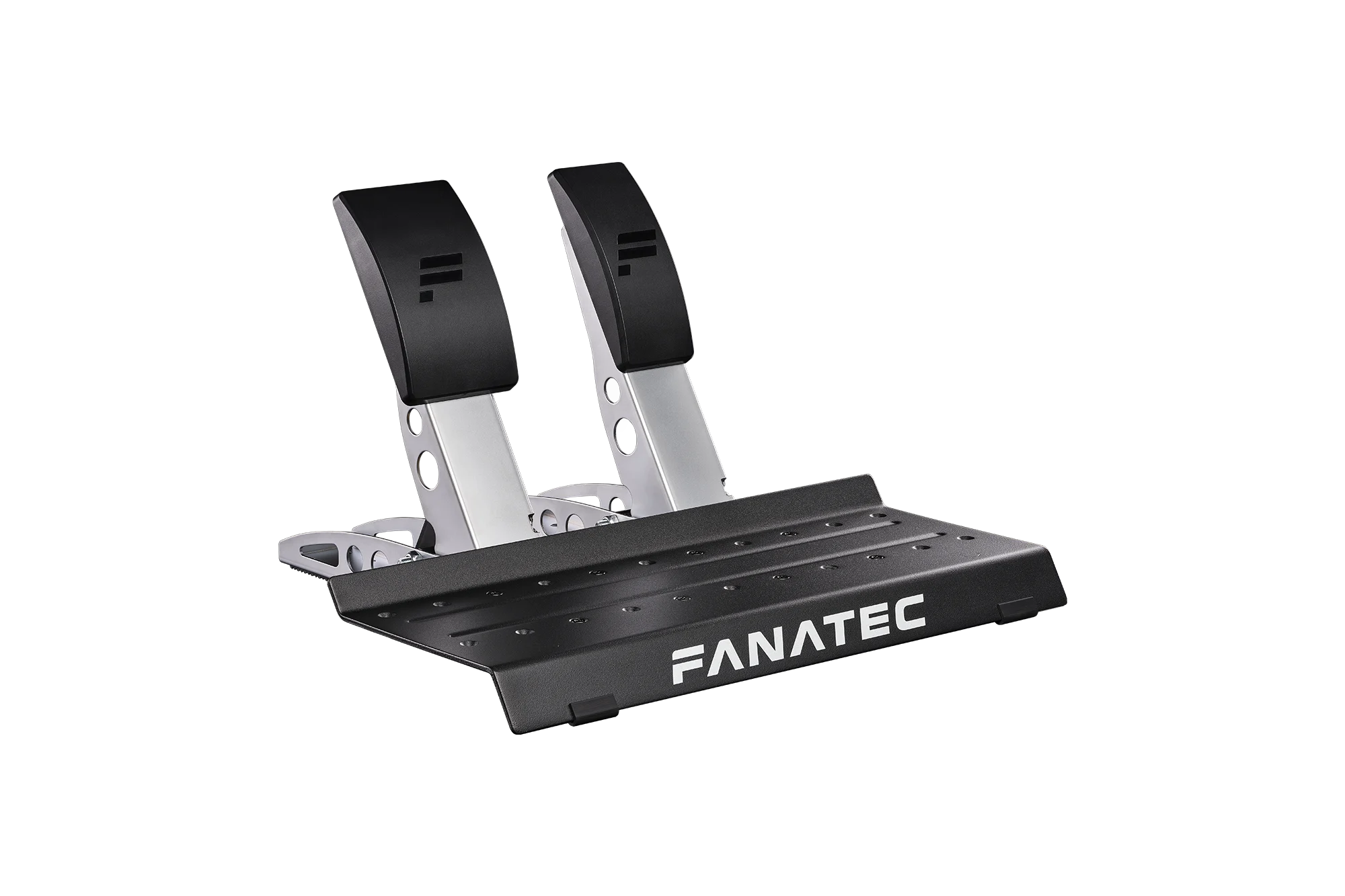

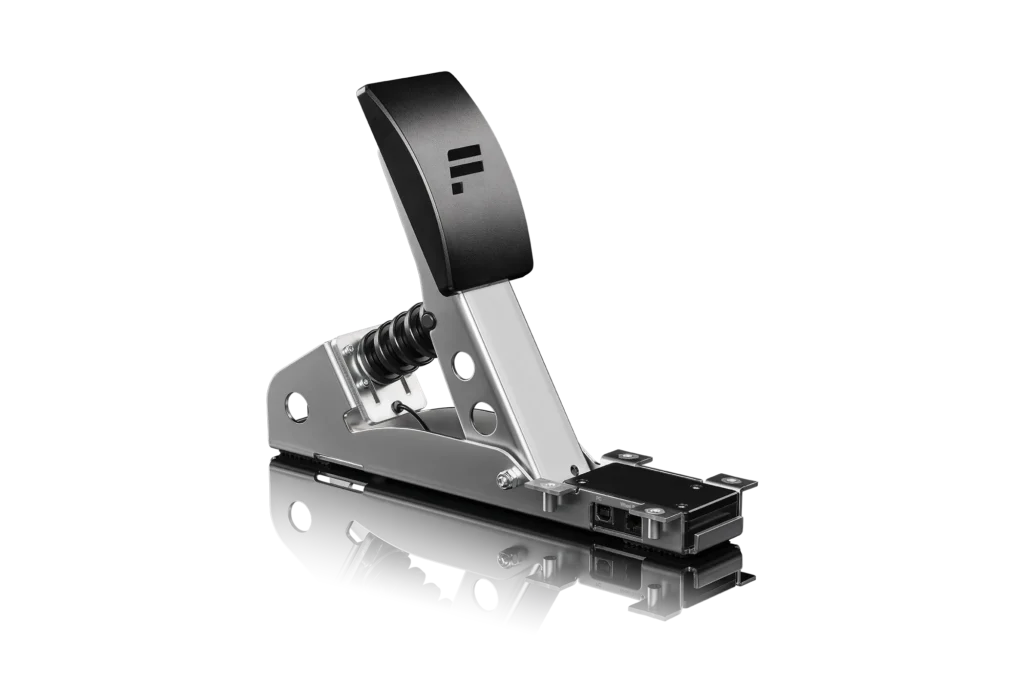

The 5 Nm bundle comes with the two-pedal CSL Pedals, which use Hall effect sensors, and the brake reads how far you push it. They connect straight to the wheelbase with the included RJ12 cable, which is how they get onto the Xbox. Fanatec’s CSL Pedals Load Cell Kit replaces that brake pedal completely, and the old brake becomes your clutch. A load cell is a sensor that reads how hard you’re pressing the pedal. The kit comes in the 8 Nm bundle.

The ClubSport Pedals V3, higher up Fanatec’s range, have a 90 kg load cell, and our guide to sim racing pedals goes further on the brake itself. They plug into the wheelbase on an Xbox too, because Fanatec says USB-only connections, such as the ClubSport USB Adapter, aren’t recognised by Xbox consoles. Every bit of force you put through that brake goes straight into the pedal base of your rig.

The games worth building it for

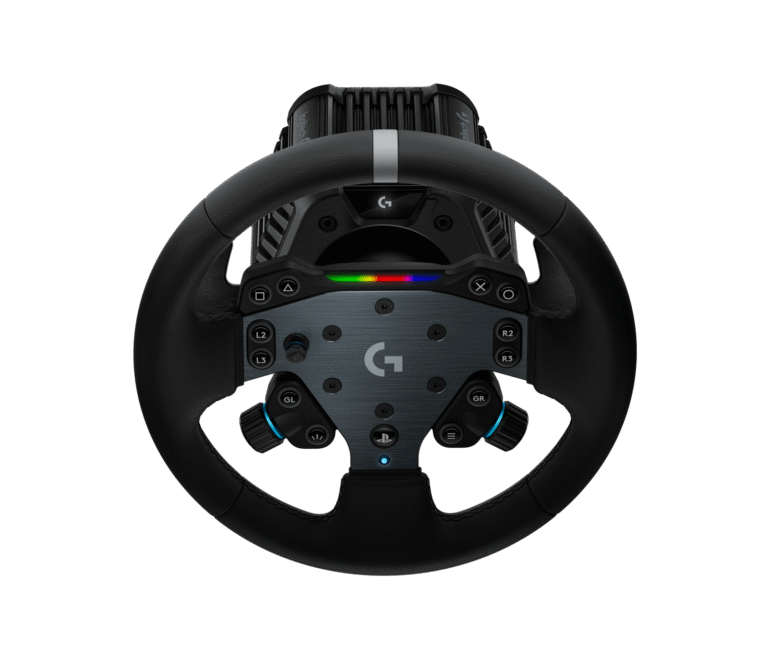

Forza Horizon 6 came out on 19 May 2026, and on console it’s in Game Pass Ultimate. Its Xbox wheel list covers the Logitech G920, G923, RS50 and G PRO, plus Thrustmaster’s T248 and TX, among others. On the Fanatec side it lists the CSL DD, the GT DD Pro, the ClubSport V2 and V2.5 and the Podium DD1 and DD2 as tested bases. The Thrustmaster T598 and T128 and the Moza R3 only have partial support, and support for the ClubSport DD+ is listed as coming in an update. Forza Motorsport is still on Xbox Series X|S and Game Pass, but Turn 10 has said it plans no new cars, tracks, features or regular bug fixes. If you’re still racing it, our Forza Motorsport wheel settings are the place to start.

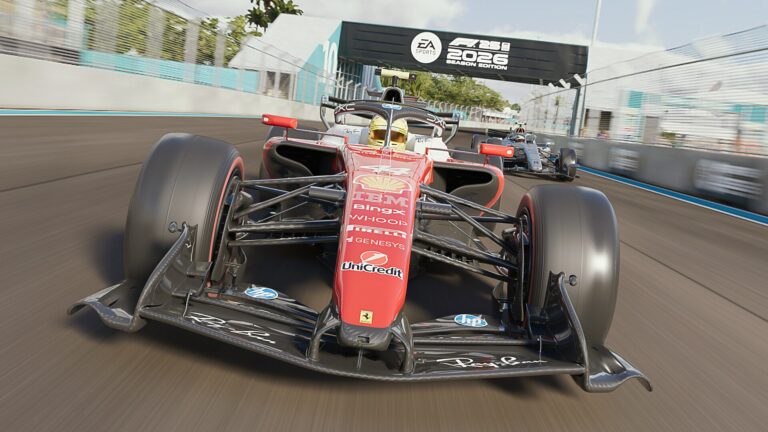

F1 25 on Xbox Series X|S supports Fanatec, Logitech, Thrustmaster, Moza and Turtle Beach wheels, going by EA’s own list, and our F1 25 wheel settings cover the setup. Assetto Corsa Competizione has a native Xbox Series X|S version. The iRacing sim isn’t on Xbox, though iRacing Arcade and NASCAR 25 are, and Le Mans Ultimate is still PC only. The rest are in our best Xbox racing games list.

When the Xbox doesn’t see the wheel

If the Xbox doesn’t see a Fanatec base at all, check the wheel on the front. A PC-only steering wheel won’t work on the console, so fit an Xbox-licensed one, and the base, pedals and shifter will work through it.

Fanatec’s firmware updates are done on a Windows PC, since Fanatec says its App is required “for installing the latest firmware updates for all platforms”. Forza’s support page tells Xbox players to do the same with any wheel, updating its drivers and firmware by connecting it to a PC or laptop. If you only race on the Xbox, don’t worry, a laptop with the maker’s software on it is all it takes, and then the wheel goes back on the console. If Fanatec pedals don’t register, check they’re plugged into the wheelbase, because the Xbox won’t see them on USB. For anything else, our Fanatec troubleshooting guide is the next stop.

On the Moza R3, the ESX switches between Xbox and PC mode when you hold S1 and S2 for five seconds. In Xbox mode Moza disables some of the ESX’s buttons and doesn’t support the telemetry function, so a button that does nothing on the console may simply be one of those.

What I’d buy for an Xbox

If I were buying for an Xbox today, it would be the CSL DD Ready2Race GT3 bundle, and the 8 Nm one if the budget stretches, because the load cell brake and the table clamp come with it. For less money it’s the Moza R3 with the ESX, which is the one I own. Forza Horizon 6 only lists the R3 with partial support, though. And if you already have a Fanatec base, all you need is the CSL Steering Wheel GT3.

You’ll get used to the unique pattern of force feedback on any of these wheels anyway. It’s much the same as a real car, where no two racing cars feel the same at the steering rack. Seat time plus refinement over time is better than buying the newest device and expecting it to make you faster. I’ll see you out on track!

---
